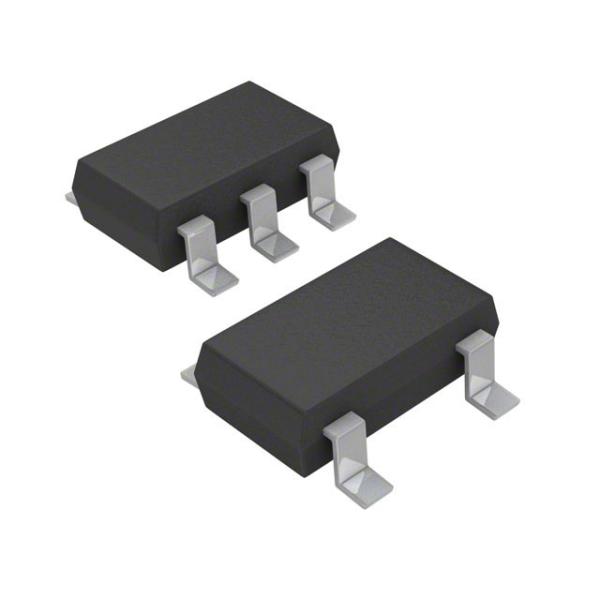

MP8802DJ-3.3-LF-Z Linear Voltage Regulator IC Positive Adjustable (Fixed) 1 Output 250mA TSOT-23-5
Quick Detail:
| Manufacturer | Monolithic Power Systems Inc. |
| Manufacturer Product Number | MP8802DJ-3.3-LF-Z |
| Description | IC REG LIN POS ADJ 250MA TSOT23 |
| Detailed Description | Linear Voltage Regulator IC Positive Adjustable (Fixed) 1 Output 250mA TSOT-23-5 |
Product Attributes:
| TYPE | DESCRIPTION |
| Category | Voltage Regulators - Linear |
| Mfr | Monolithic Power Systems Inc. |
| Product Status | |
| Output Configuration | Positive |
| Output Type | Adjustable (Fixed) |
| Number of Regulators | |
| Voltage - Input (Max) | |
| Voltage - Output (Min/Fixed) | |
| Voltage - Output (Max) | |
| Voltage Dropout (Max) | |
| Current - Output | 250mA |
| Current - Quiescent (Iq) | |
| PSRR | 70db ~ 30dB (1kHz ~ 1MHz) |
| Control Features | |
| Protection Features | |
| Operating Temperature | |
| Mounting Type | |
| Package / Case | |
| Supplier Device Package | |
| Base Product Number | MP8802 |
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names | |
| 1589-1941-ND |
| 1589-1941 |
| 1589-1941-2 |
| 1589-1941-1 |
| Standard Package | 3000 |
Description:
The MP8802 is a low-noise, low-dropout linear regulator. It operates from 2.7V to 6.5V input voltage,
and regulates the output voltage with 2% accuracy at 2.5V, 2.85V, 3.3V, or from 1.25V to 5V.
The MP8802 can supply up to 250mA of load current. The MP8802 features thermal overload protection.
It is available in a 5-pin TSOT23-5 package.
FEATURES
• Low 250mV Dropout at 250mA Output
• 2% Accurate Output Voltage
• Fixed Output Voltage Options of 2.5V, 2.85V or 3.3V
• Adjustable Output Voltage Option from 1.25V to 5V using an External Resistor Divider
• Up to 6.5V Input Voltage
• High PSRR o 70dB at 1KHz o 30dB at 1MHz
• Better Than 0.001%/mA Load Regulation
• Stable With Low-ESR Output Capacitor
• Low 125μA Ground Current
• Internal Thermal Protection
APPLICATIONS
• 802.11 PC Cards
• Mobile Handset PLL Power
• Audio Codec Power
DataPicture:https://www.monolithicpower.com/en/documentview/productdocument/index/version/2/document_type/Datasheet/lang/en/sku/MP8802/document_id/1239
